System Communication

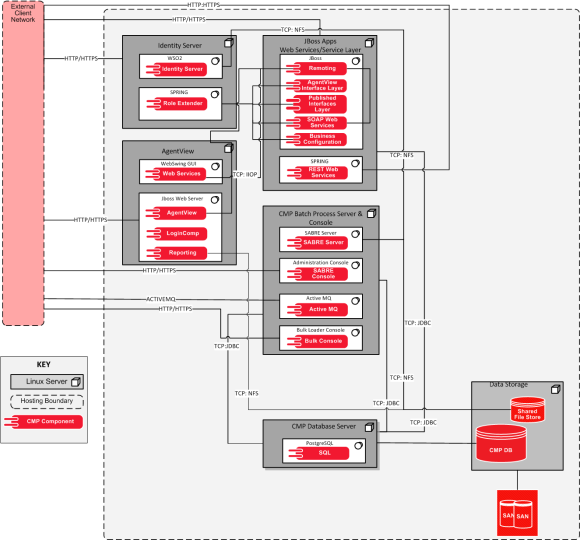

The following diagram of a simple sample deployment shows how CMP
Converged Monetisation Platform. The MDS Global product that supports customer care and billing for digital service providers. components communicate:
CMP Components Communication
CMP components must be able to communicate with each other, the following table shows which components in the CMP component stack need to communicate and over which (default) port.
| Intra Stack Communications | ||
|---|---|---|
| Source Hosts | Destination Host | Port Numbers |
|
Identity Server JBoss Server instances - required for
Role Extender application SABRE Server (Batch sever application instances) Administration Console application instances REST web services application Report Server (Instance of a Pentaho server) Bulk Action UI (optional component) |
Database Server | 5432 |
|
AgentView Interfaces Layer AgentView application instances Published Interfaces Layer Role Extender application Administration Console application instances REST web services application Business Configuration application Bulk Action UI (optional) |
Identity Server OAuth2 is used for communication between components and the server. |
9443 |
|
AgentView Interfaces Layer Published Interfaces Layer |
rolext | 8081 |
|
SABRE Server(Batch sever application instances) Administration Console application instances |
SABRE Server Administration Console |
27300 27400 22 |
External Access
To provide user A person with the capability to log in to the CMP GUI software, such as a customer service advisor or agent. access to CMP, communication over the following ports must be allowed from the client networks. For more information, see Network In the context of CMP, the infrastructure on which usage of registered customers will be measured – this could be a mobile phone network, broadband network or other non-telecommunications network. Communication in the CMP Installation Guide.
| Target Host Groups | HTTPS Port |
|---|---|
| JBoss Web Server instances for AgentView application | 7443 |
|
JBoss Server instances - required for:
|
8443 |
| Identity Server | 9443 |
| Administration Console application instances | 31212 |
| SABRE Server (Batch sever application instances) | 21212 |
| restws | 9000 |
